Step 08 - Agentic AI - Model Context Protocol
Building on top of the Function Calling concept of the previous step, let’s explore how we can make this idea more distributed with the Model Context Protocol pattern.

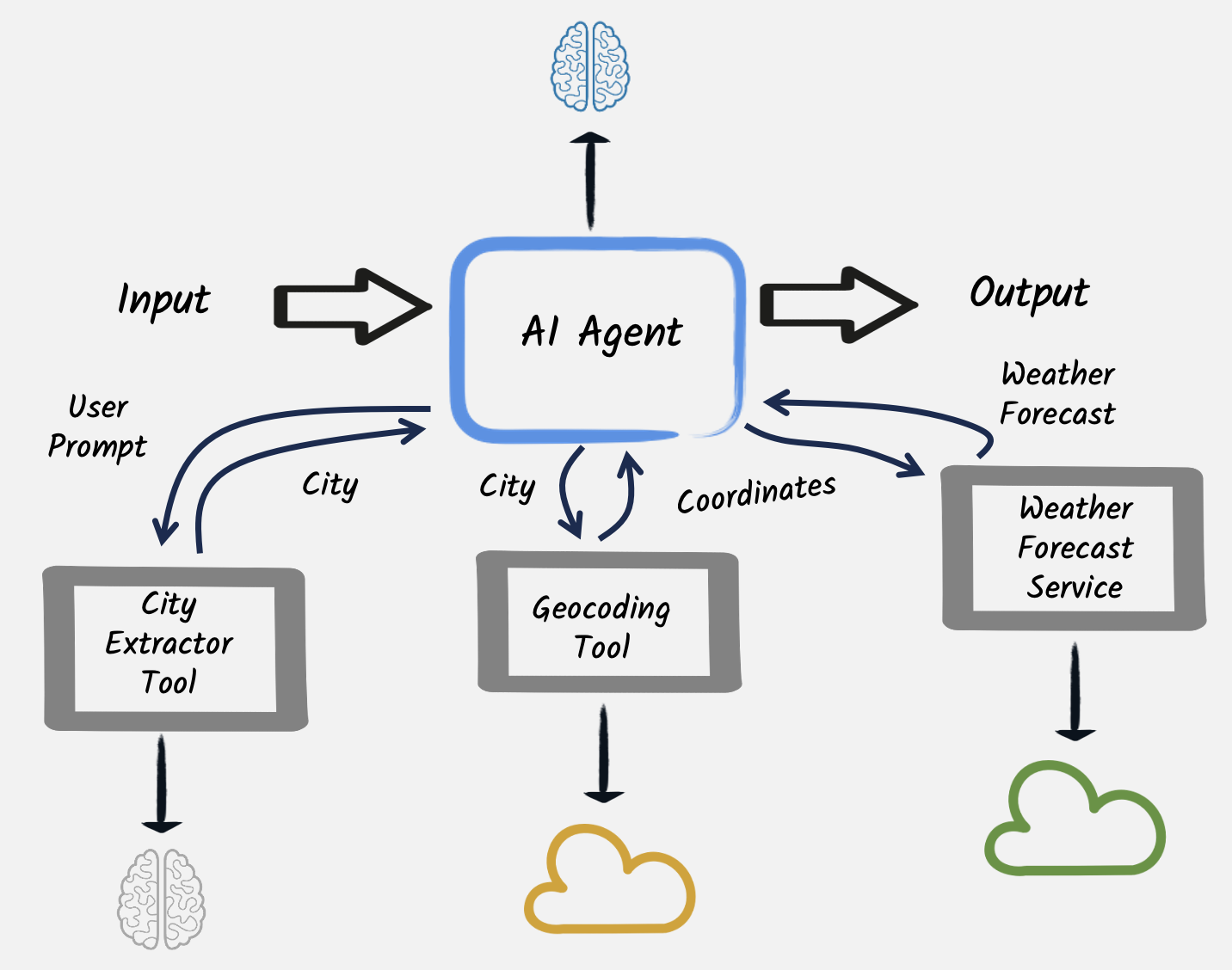

Basically, we will allow the LLM to act as a true agent, calling a predefined set of tools using the Model Context Protocol to further enhance its knowledge and/or functionality.
Model Context Protocol
The Model Context Protocol serves as an open standard, facilitating the creation of secure, bidirectional links between data repositories and AI-driven tools. The design is uncomplicated; developers can either make their data accessible via MCP servers or construct AI applications (MCP clients) that interface with these servers.
In this step, we are going to see how to implement both MCP servers and clients in our application. The MCP client will be integrated with our existing code, while the MCP server will be a standalone application that the MCP client’s agent will call to retrieve additional context.
The final code is available in the step-08 folder for the client application (the one we’ve been working on). You will find the MCP server application in the step-08-mcp-server folder.
As before, we recommend you follow the step-by-step guide to understand how it works, and the different steps to implement this pattern.
Create a new MCP Weather Server project
Let’s create a Quarkus MCP server from scratch (or, you can use the step-08-mcp-server project directly). We’re going to add the Quarkus MCP server dependency, and the REST Client dependency so we can call a remote weather service to retrieve current weather conditions for a given location.
In your terminal, make sure you’re in the section-1 directory of the workshop, and then execute the following command:
quarkus create app dev.langchain4j.quarkus.workshop:quarkus-langchain4j-workshop-08-mcp-server:1.0-SNAPSHOT -x quarkus-mcp-server-sse -x quarkus-rest-client-jackson
You should now see a new quarkus-langchain4j-workshop-08-mcp-server folder. In it, create a new src/main/java/dev/langchain4j/quarkus/workshop/WeatherClient.java file. This will be our REST client to call the remote weather API.
Populate it with the below code:
package dev.langchain4j.quarkus.workshop;
import jakarta.ws.rs.GET;
import jakarta.ws.rs.Path;
import jakarta.ws.rs.QueryParam;
import org.eclipse.microprofile.rest.client.inject.RegisterRestClient;
import org.jboss.resteasy.reactive.RestQuery;
@Path("/v1/forecast")
@RegisterRestClient(configKey="weatherclient")
public interface WeatherClient {
@GET
String getForecast(
@RestQuery double latitude,
@RestQuery double longitude,
@RestQuery int forecastDays,
@RestQuery String hourly
);
}
package dev.langchain4j.quarkus.workshop;
import org.eclipse.microprofile.rest.client.inject.RestClient;
import io.quarkiverse.mcp.server.Tool;
import io.quarkiverse.mcp.server.ToolArg;
public class Weather {
@RestClient
WeatherClient weatherClient;
@Tool(description = "Get weather forecast for a location.")
String getForecast(@ToolArg(description = "Latitude of the location") double latitude,
@ToolArg(description = "Longitude of the location") double longitude) {
return weatherClient.getForecast(
latitude,
longitude,
16,
"temperature_2m,snowfall,rain,precipitation,precipitation_probability");
}
}
Great! All that’s left is to add some configurations to our project. To the application.properties, add the following:
# run the MCP server on a different port than the client
quarkus.http.port=8081
# Configure MCP server
quarkus.mcp.server.server-info.name=Weather Service
quarkus.mcp.server.traffic-logging.enabled=true
quarkus.mcp.server.traffic-logging.text-limit=100
# Configure the Rest Client
quarkus.rest-client.logging.scope=request-response
quarkus.rest-client.follow-redirects=true
quarkus.rest-client.logging.body-limit=50
quarkus.rest-client."weatherclient".uri=https://api.open-meteo.com/
Easy right? With just a few lines of code, we were able to build a full-blown MCP server that would require much more work with any other stack or language out there! Quarkus FTW!
Go ahead and start the server from the quarkus-langchain4j-workshop-08-mcp-server folder in a separate terminal window/tab:
Now, let’s configure our client app to use the newly built MCP server.
A new MCP client dependency
Quarkus LangChain4j supports MCP with equally minimal work. To use it, we need to install a new MCP client dependency.
Open the pom.xml file in your main project (ie. NOT the one containing the MCP Server) and add the following dependency:
<dependency>
<groupId>io.quarkiverse.langchain4j</groupId>
<artifactId>quarkus-langchain4j-mcp</artifactId>
</dependency>
Tip
You could also open another terminal and run
The LangChain4j MCP dependency will allow us to call remote MCP servers. Remember, MCP servers can be written in Java, like the one we created above, but in fact they can be any kind of technology that exposes the MCP protocol.
Configuring the MCP client
Now that we have the dependency, we just need to configure it to call our MCP server using the http transport-type. You can do that in the application.properties file:
quarkus.langchain4j.mcp.weather.transport-type=http
quarkus.langchain4j.mcp.weather.url=http://localhost:8081/mcp/sse/
Notice that we have used the “weather” name. We will reference this in the AI service to use this particular MCP server.
We’ll add a @McpToolBox(“weather”) annotation to our AI Service to reference the available MCP server. And we’ll add some instructions to the prompt to make the model calls retrieve the current weather for a car rental location, and provide suggestions on what special equipment the driver might need.
In the CustomerSupportAgent.java file, update the SystemMessage with the following:
package dev.langchain4j.quarkus.workshop;
import io.quarkiverse.langchain4j.mcp.runtime.McpToolBox;
import jakarta.enterprise.context.SessionScoped;
import dev.langchain4j.service.SystemMessage;
import io.quarkiverse.langchain4j.RegisterAiService;
import io.quarkiverse.langchain4j.ToolBox;
@SessionScoped
@RegisterAiService
public interface CustomerSupportAgent {
@SystemMessage("""
You are a customer support agent of a car rental company 'Miles of Smiles'.
You are friendly, polite and concise.
If the question is unrelated to car rental, you should politely redirect
the customer to the right department.
You will get the location and start dates for a booking from the booking table
in the database.
Figure out the coordinates for that location,
and based on the coordinates and the date,
call a tool to get the weather for that specific location on the given date.
You should provide information about specific equipment
the car rental booking might need based on the weather,
such as snow chains or air conditioning.
Today is {current_date}.
""")
@ToolBox(BookingRepository.class)
@McpToolBox("weather")
String chat(String userMessage);
}
Testing the function calling
Let’s test the function calling. Make sure the application is running (./mvnw quarkus:dev).
Open your browser and go to http://localhost:8080. In the chatbot, let’s try the following interactions:
AI: Sure, I can help with that. I’ll need a bit more information to proceed: 1. Your first and last name to look up the booking. 2. The booking ID associated with your reservation. Please provide these details so I can assist you further.
AI: Here are the details of your booking, Speedy McWheels: - Booking ID: 2 - Location: Sao Paulo, Brazil - Start Date: September 17, 2025 - End Date: September 19, 2025 ### Weather Forecast for Sao Paulo, Brazil on Your Booking Dates: - Temperature: Ranges from 18°C to 30°C - Precipitation: Minimal chance of rain - Snowfall: None ### Recommendations: Since the temperatures in Sao Paulo can get quite warm, consider renting a vehicle with air conditioning to ensure comfort during your drive. If you have any other questions or need further assistance, feel free to ask!
AI: Based on the provided weather forecast for Sao Paulo, Brazil during your booking dates (September 17-19, 2025), you will not need any additional equipment such as snow chains or winter gear, as there is no expected snow or significant rainfall. However, it would be wise to ensure your rental car has air conditioning due to the warm temperatures. If you have any other questions or need further assistance, feel free to ask!
Conclusion
In this step, we explored how to work with MCP servers and clients within our application, enabling us to create versatile agents that can not only reason but also interact dynamically with remote systems that can provide additional functionality and data to our application.
An MCP server in this context is very similar to the concept of local function calling we explored previously, except it’s running in a remote application. This allows us to interface with (and build) reusable components.
As you could see, the actual implementation of the MCP server is also entirely customizable.
However, introducing tools and function calling also comes with new risks, such as LLM misbehavior (e.g., calling functions excessively or with incorrect parameters) or vulnerabilities to prompt injection. In the next step, we’ll explore a straightforward approach to mitigate prompt injection using guardrails, ensuring safer and more reliable interactions.
